Grafana 대시보드를 가져오는 방법(Import dashboard)

Grafana 대시보드를 JSON 파일을 사용하여 가져오는 방법입니다.

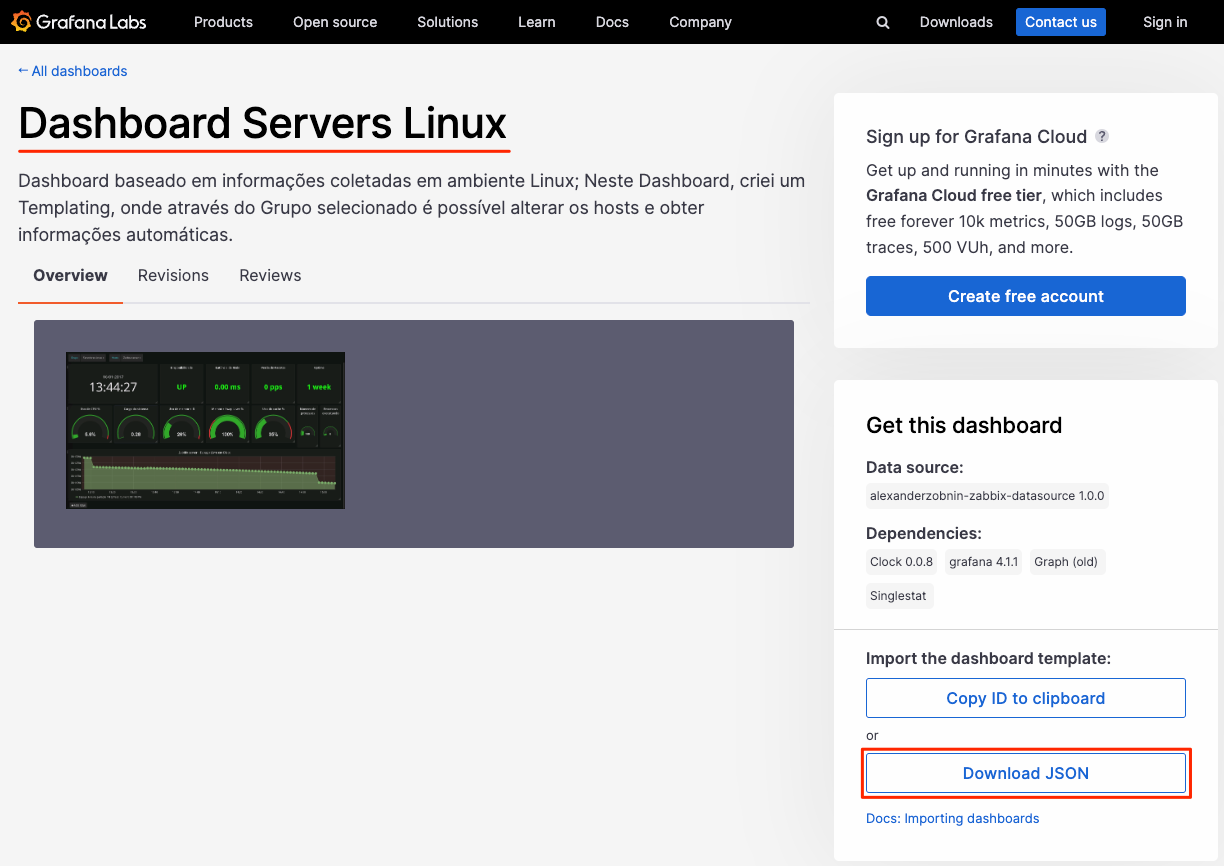

Grafana 대시보드 Download

grafana_dashboard1
grafana_dashboard2

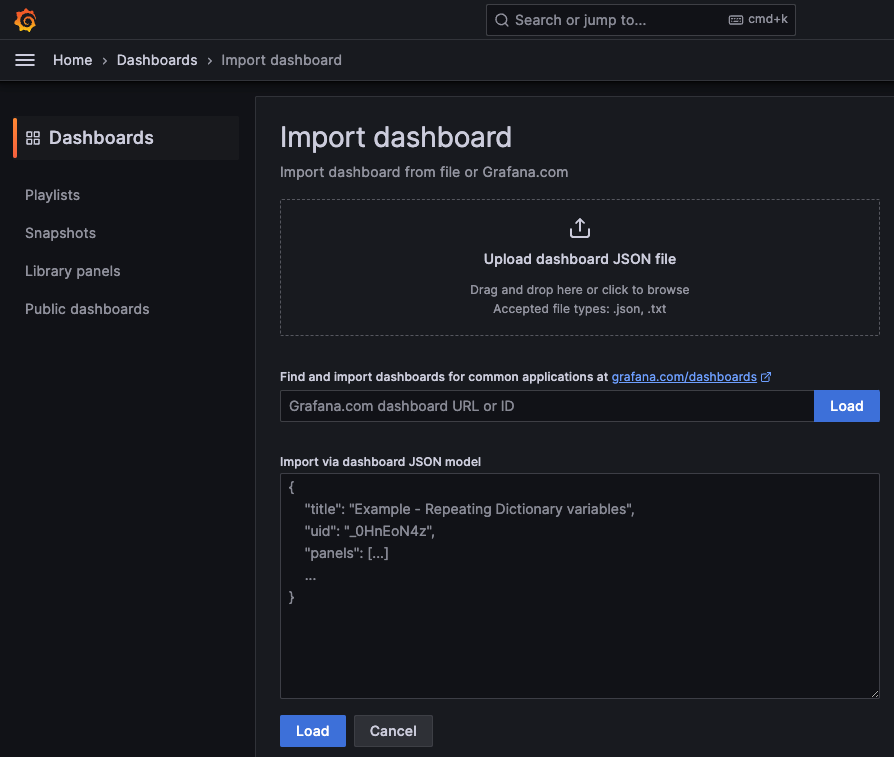

Grafana Importing dashboards

더보기

---

{
  "__inputs": [
    {
      "name": "DS_ZABBIX_FOURSYS",
      "label": "",
      "description": "",
      "type": "datasource",
      "pluginId": "alexanderzobnin-zabbix-datasource",
      "pluginName": "Zabbix"
    }
  ],
  "__requires": [
    {
      "type": "datasource",
      "id": "alexanderzobnin-zabbix-datasource",
      "name": "Zabbix",
      "version": "1.0.0"
    },
    {
      "type": "grafana",
      "id": "grafana",
      "name": "Grafana",
      "version": "4.1.1"
    },
    {
      "type": "panel",
      "id": "grafana-clock-panel",
      "name": "Clock",
      "version": "0.0.8"
    },
    {
      "type": "panel",
      "id": "graph",
      "name": "Graph",
      "version": ""
    },
    {
      "type": "panel",
      "id": "singlestat",
      "name": "Singlestat",
      "version": ""
    }
  ],
  "annotations": {
    "list": []
  },
  "editable": true,
  "gnetId": 1320,
  "graphTooltip": 0,
  "hideControls": false,
  "id": null,
  "links": [],
  "refresh": "5s",
  "rows": [
    {
      "collapse": false,
      "height": 191,
      "panels": [
        {
          "bgColor": null,
          "clockType": "24 hour",
          "countdownSettings": {
            "endCountdownTime": "2017-01-15T11:55:00.000Z",
            "endText": "00:00:00"
          },
          "dateSettings": {
            "dateFormat": "DD-MM-YYYY",
            "fontSize": "20px",
            "fontWeight": "normal",
            "showDate": true
          },
          "id": 1,
          "links": [],
          "mode": "time",
          "offsetFromUtc": null,
          "offsetFromUtcMinutes": null,
          "span": 4,
          "timeSettings": {
            "customFormat": "HH:mm:ss",
            "fontSize": "60px",
            "fontWeight": "normal"
          },
          "title": "",
          "type": "grafana-clock-panel"
        },
        {
          "cacheTimeout": null,
          "colorBackground": false,
          "colorValue": true,
          "colors": [
            "rgba(50, 172, 45, 0.97)",
            "rgb(18, 251, 0)",
            "rgba(245, 54, 54, 0.9)"
          ],
          "datasource": "${DS_ZABBIX_FOURSYS}",
          "format": "none",
          "gauge": {
            "maxValue": 100,
            "minValue": 0,
            "show": false,
            "thresholdLabels": false,
            "thresholdMarkers": true
          },
          "id": 3,
          "interval": null,
          "links": [],
          "mappingType": 1,
          "mappingTypes": [
            {
              "name": "value to text",
              "value": 1
            },
            {
              "name": "range to text",
              "value": 2
            }
          ],
          "maxDataPoints": 100,
          "nullPointMode": "connected",
          "nullText": null,
          "postfix": "",
          "postfixFontSize": "50%",
          "prefix": "",
          "prefixFontSize": "50%",
          "rangeMaps": [
            {
              "from": "null",
              "text": "N/A",
              "to": "null"
            }
          ],
          "span": 2,
          "sparkline": {
            "fillColor": "rgba(31, 118, 189, 0.18)",
            "full": false,
            "lineColor": "rgb(31, 120, 193)",
            "show": false
          },
          "targets": [
            {
              "application": {
                "filter": "ICMP"
              },
              "functions": [],
              "group": {
                "filter": "$Grupo"
              },
              "host": {
                "filter": "$Hosts"
              },
              "item": {
                "filter": "Disponibilidade"
              },
              "mode": 0,
              "options": {
                "showDisabledItems": false
              },
              "refId": "A"
            }
          ],
          "thresholds": "",
          "title": "Disponibilidade",
          "type": "singlestat",
          "valueFontSize": "80%",
          "valueMaps": [
            {
              "op": "=",
              "text": "DOWN",
              "value": "0"
            },
            {
              "op": "=",
              "text": "UP",
              "value": "1"
            }
          ],
          "valueName": "current"
        },
        {
          "cacheTimeout": null,
          "colorBackground": false,
          "colorValue": true,
          "colors": [
            "rgba(50, 172, 45, 0.97)",
            "rgb(18, 251, 0)",
            "rgba(245, 54, 54, 0.9)"
          ],
          "datasource": "${DS_ZABBIX_FOURSYS}",
          "decimals": 2,
          "format": "ms",
          "gauge": {
            "maxValue": 100,
            "minValue": 0,
            "show": false,
            "thresholdLabels": false,
            "thresholdMarkers": true
          },
          "id": 8,
          "interval": null,
          "links": [],
          "mappingType": 1,
          "mappingTypes": [
            {
              "name": "value to text",
              "value": 1
            },
            {
              "name": "range to text",
              "value": 2
            }
          ],
          "maxDataPoints": 100,
          "nullPointMode": "connected",
          "nullText": null,
          "postfix": "",
          "postfixFontSize": "50%",
          "prefix": "",
          "prefixFontSize": "50%",
          "rangeMaps": [
            {
              "from": "null",
              "text": "N/A",
              "to": "null"
            }
          ],
          "span": 2,
          "sparkline": {
            "fillColor": "rgba(31, 118, 189, 0.18)",
            "full": false,
            "lineColor": "rgb(31, 120, 193)",
            "show": false
          },
          "targets": [
            {
              "application": {
                "filter": "ICMP"
              },
              "functions": [],
              "group": {
                "filter": "$Grupo"
              },
              "host": {
                "filter": "$Hosts"
              },
              "item": {
                "filter": "Tempo de Resposta"
              },
              "mode": 0,
              "options": {
                "showDisabledItems": false
              },
              "refId": "A"
            }
          ],
          "thresholds": "",
          "title": "Latência de Rede",
          "type": "singlestat",
          "valueFontSize": "80%",
          "valueMaps": [],
          "valueName": "current"
        },
        {
          "cacheTimeout": null,
          "colorBackground": false,
          "colorValue": true,
          "colors": [
            "rgba(50, 172, 45, 0.97)",
            "rgb(18, 251, 0)",
            "rgba(245, 54, 54, 0.9)"
          ],
          "datasource": "${DS_ZABBIX_FOURSYS}",
          "decimals": 3,
          "format": "pps",
          "gauge": {
            "maxValue": 100,
            "minValue": 0,
            "show": false,
            "thresholdLabels": false,
            "thresholdMarkers": true
          },
          "id": 10,
          "interval": null,
          "links": [],
          "mappingType": 1,
          "mappingTypes": [
            {
              "name": "value to text",
              "value": 1
            },
            {
              "name": "range to text",
              "value": 2
            }
          ],
          "maxDataPoints": 100,
          "nullPointMode": "connected",
          "nullText": null,
          "postfix": "",
          "postfixFontSize": "50%",
          "prefix": "",
          "prefixFontSize": "50%",
          "rangeMaps": [
            {
              "from": "null",
              "text": "N/A",
              "to": "null"
            }
          ],
          "span": 2,
          "sparkline": {
            "fillColor": "rgba(31, 118, 189, 0.18)",
            "full": false,
            "lineColor": "rgb(31, 120, 193)",
            "show": false
          },
          "targets": [
            {
              "application": {
                "filter": "ICMP"
              },
              "functions": [],
              "group": {
                "filter": "$Grupo"
              },
              "host": {
                "filter": "$Hosts"
              },
              "item": {
                "filter": "Perda de Pacotes"
              },
              "mode": 0,
              "options": {
                "showDisabledItems": false
              },
              "refId": "A"
            }
          ],
          "thresholds": "",
          "title": "Perda de Pacotes",
          "type": "singlestat",
          "valueFontSize": "80%",
          "valueMaps": [],
          "valueName": "current"
        },
        {
          "cacheTimeout": null,
          "colorBackground": false,
          "colorValue": true,
          "colors": [
            "rgba(50, 172, 45, 0.97)",
            "rgb(18, 251, 0)",
            "rgba(245, 54, 54, 0.9)"
          ],
          "datasource": "${DS_ZABBIX_FOURSYS}",
          "decimals": 0,
          "format": "s",
          "gauge": {
            "maxValue": 100,
            "minValue": 0,
            "show": false,
            "thresholdLabels": false,
            "thresholdMarkers": true
          },
          "id": 2,
          "interval": null,
          "links": [],
          "mappingType": 1,
          "mappingTypes": [
            {
              "name": "value to text",
              "value": 1
            },
            {
              "name": "range to text",
              "value": 2
            }
          ],
          "maxDataPoints": 100,
          "nullPointMode": "connected",
          "nullText": null,
          "postfix": "",
          "postfixFontSize": "50%",
          "prefix": "",
          "prefixFontSize": "50%",
          "rangeMaps": [
            {
              "from": "null",
              "text": "N/A",
              "to": "null"
            }
          ],
          "span": 2,
          "sparkline": {
            "fillColor": "rgba(31, 118, 189, 0.18)",
            "full": false,
            "lineColor": "rgb(31, 120, 193)",
            "show": false
          },
          "targets": [
            {
              "application": {
                "filter": "Sistema"
              },
              "functions": [],
              "group": {
                "filter": "$Grupo"
              },
              "host": {
                "filter": "$Hosts"
              },
              "item": {
                "filter": "Uptime"
              },
              "mode": 0,
              "options": {
                "showDisabledItems": false
              },
              "refId": "A"
            }
          ],
          "thresholds": "",
          "title": "Uptime",
          "type": "singlestat",
          "valueFontSize": "80%",
          "valueMaps": [
            {
              "op": "=",
              "text": "",
              "value": ""
            },
            {
              "op": "=",
              "text": "",
              "value": ""
            }
          ],
          "valueName": "current"
        }
      ],
      "repeat": null,
      "repeatIteration": null,
      "repeatRowId": null,
      "showTitle": false,
      "title": "Dashboard Row",
      "titleSize": "h6"
    },
    {
      "collapse": false,
      "height": 181,
      "panels": [
        {
          "cacheTimeout": null,
          "colorBackground": false,
          "colorValue": false,
          "colors": [
            "rgba(50, 172, 45, 0.97)",
            "rgba(237, 129, 40, 0.89)",
            "rgba(245, 54, 54, 0.9)"
          ],
          "datasource": "${DS_ZABBIX_FOURSYS}",
          "format": "percent",
          "gauge": {
            "maxValue": 100,
            "minValue": 0,
            "show": true,
            "thresholdLabels": false,
            "thresholdMarkers": true
          },
          "id": 4,
          "interval": null,
          "links": [],
          "mappingType": 1,
          "mappingTypes": [
            {
              "name": "value to text",
              "value": 1
            },
            {
              "name": "range to text",
              "value": 2
            }
          ],
          "maxDataPoints": 100,
          "nullPointMode": "connected",
          "nullText": null,
          "postfix": "",
          "postfixFontSize": "50%",
          "prefix": "",
          "prefixFontSize": "50%",
          "rangeMaps": [
            {
              "from": "null",
              "text": "N/A",
              "to": "null"
            }
          ],
          "span": 2,
          "sparkline": {
            "fillColor": "rgba(31, 118, 189, 0.18)",
            "full": false,
            "lineColor": "rgb(31, 120, 193)",
            "show": false
          },
          "targets": [
            {
              "application": {
                "filter": "CPU"
              },
              "functions": [],
              "group": {
                "filter": "$Grupo"
              },
              "host": {
                "filter": "$Hosts"
              },
              "item": {
                "filter": "Uso de CPU %"
              },
              "mode": 0,
              "options": {
                "showDisabledItems": false
              },
              "refId": "A"
            }
          ],
          "thresholds": "95",
          "title": "Uso de CPU %",
          "type": "singlestat",
          "valueFontSize": "80%",
          "valueMaps": [
            {
              "op": "=",
              "text": "N/A",
              "value": "null"
            }
          ],
          "valueName": "current"
        },
        {
          "cacheTimeout": null,
          "colorBackground": false,
          "colorValue": false,
          "colors": [
            "rgba(245, 54, 54, 0.9)",
            "rgba(237, 129, 40, 0.89)",
            "rgba(50, 172, 45, 0.97)"
          ],
          "datasource": "${DS_ZABBIX_FOURSYS}",
          "decimals": 2,
          "format": "short",
          "gauge": {
            "maxValue": 100,
            "minValue": 0,
            "show": true,
            "thresholdLabels": false,
            "thresholdMarkers": true
          },
          "id": 7,
          "interval": null,
          "links": [],
          "mappingType": 1,
          "mappingTypes": [
            {
              "name": "value to text",
              "value": 1
            },
            {
              "name": "range to text",
              "value": 2
            }
          ],
          "maxDataPoints": 100,
          "nullPointMode": "connected",
          "nullText": null,
          "postfix": "",
          "postfixFontSize": "50%",
          "prefix": "",
          "prefixFontSize": "50%",
          "rangeMaps": [
            {
              "from": "null",
              "text": "N/A",
              "to": "null"
            }
          ],
          "span": 2,
          "sparkline": {
            "fillColor": "rgba(31, 118, 189, 0.18)",
            "full": false,
            "lineColor": "rgb(31, 120, 193)",
            "show": false
          },
          "targets": [
            {
              "application": {
                "filter": "CPU"
              },
              "functions": [],
              "group": {
                "filter": "$Grupo"
              },
              "host": {
                "filter": "$Hosts"
              },
              "item": {
                "filter": "Carga de sistema (média de 1 min por processador)"
              },
              "mode": 0,
              "options": {
                "showDisabledItems": false
              },
              "refId": "A"
            }
          ],
          "thresholds": "",
          "title": "Carga do sistema",
          "type": "singlestat",
          "valueFontSize": "80%",
          "valueMaps": [
            {
              "op": "=",
              "text": "N/A",
              "value": "null"
            }
          ],
          "valueName": "current"
        },
        {
          "cacheTimeout": null,
          "colorBackground": false,
          "colorValue": false,
          "colors": [
            "rgba(50, 172, 45, 0.97)",
            "rgba(237, 129, 40, 0.89)",
            "rgba(245, 54, 54, 0.9)"
          ],
          "datasource": "${DS_ZABBIX_FOURSYS}",
          "format": "percent",
          "gauge": {
            "maxValue": 100,
            "minValue": 0,
            "show": true,
            "thresholdLabels": false,
            "thresholdMarkers": true
          },
          "id": 5,
          "interval": null,
          "links": [],
          "mappingType": 1,
          "mappingTypes": [
            {
              "name": "value to text",
              "value": 1
            },
            {
              "name": "range to text",
              "value": 2
            }
          ],
          "maxDataPoints": 100,
          "nullPointMode": "connected",
          "nullText": null,
          "postfix": "",
          "postfixFontSize": "50%",
          "prefix": "",
          "prefixFontSize": "50%",
          "rangeMaps": [
            {
              "from": "null",
              "text": "N/A",
              "to": "null"
            }
          ],
          "span": 2,
          "sparkline": {
            "fillColor": "rgba(31, 118, 189, 0.18)",
            "full": false,
            "lineColor": "rgb(31, 120, 193)",
            "show": false
          },
          "targets": [
            {
              "application": {
                "filter": "Memória"
              },
              "functions": [],
              "group": {
                "filter": "$Grupo"
              },
              "host": {
                "filter": "$Hosts"
              },
              "item": {
                "filter": "Uso de memória %"
              },
              "mode": 0,
              "options": {
                "showDisabledItems": false
              },
              "refId": "A"
            }
          ],
          "thresholds": "95",
          "title": "Uso de memória %",
          "type": "singlestat",
          "valueFontSize": "80%",
          "valueMaps": [
            {
              "op": "=",
              "text": "N/A",
              "value": "null"
            }
          ],
          "valueName": "current"
        },
        {
          "cacheTimeout": null,
          "colorBackground": false,
          "colorValue": false,
          "colors": [
            "rgba(245, 54, 54, 0.9)",
            "rgba(237, 129, 40, 0.89)",
            "rgba(50, 172, 45, 0.97)"
          ],
          "datasource": "${DS_ZABBIX_FOURSYS}",
          "format": "percent",
          "gauge": {
            "maxValue": 100,
            "minValue": 0,
            "show": true,
            "thresholdLabels": false,
            "thresholdMarkers": true
          },
          "id": 11,
          "interval": null,
          "links": [],
          "mappingType": 1,
          "mappingTypes": [
            {
              "name": "value to text",
              "value": 1
            },
            {
              "name": "range to text",
              "value": 2
            }
          ],
          "maxDataPoints": 100,
          "nullPointMode": "connected",
          "nullText": null,
          "postfix": "",
          "postfixFontSize": "50%",
          "prefix": "",
          "prefixFontSize": "50%",
          "rangeMaps": [
            {
              "from": "null",
              "text": "N/A",
              "to": "null"
            }
          ],
          "span": 2,
          "sparkline": {
            "fillColor": "rgba(31, 118, 189, 0.18)",
            "full": false,
            "lineColor": "rgb(31, 120, 193)",
            "show": false
          },
          "targets": [
            {
              "application": {
                "filter": "Memória"
              },
              "functions": [],
              "group": {
                "filter": "$Grupo"
              },
              "host": {
                "filter": "$Hosts"
              },
              "item": {
                "filter": "Memória Swap Livre %"
              },
              "mode": 0,
              "options": {
                "showDisabledItems": false
              },
              "refId": "A"
            }
          ],
          "thresholds": "30",
          "title": "Memória Swap Livre %",
          "type": "singlestat",
          "valueFontSize": "80%",
          "valueMaps": [
            {
              "op": "=",
              "text": "N/A",
              "value": "null"
            }
          ],
          "valueName": "current"
        },
        {
          "cacheTimeout": null,
          "colorBackground": false,
          "colorValue": false,
          "colors": [
            "rgba(50, 172, 45, 0.97)",
            "rgba(237, 129, 40, 0.89)",
            "rgba(245, 54, 54, 0.9)"
          ],
          "datasource": "${DS_ZABBIX_FOURSYS}",
          "format": "percent",
          "gauge": {
            "maxValue": 100,
            "minValue": 0,
            "show": true,
            "thresholdLabels": false,
            "thresholdMarkers": true
          },
          "id": 6,
          "interval": null,
          "links": [],
          "mappingType": 1,
          "mappingTypes": [
            {
              "name": "value to text",
              "value": 1
            },
            {
              "name": "range to text",
              "value": 2
            }
          ],
          "maxDataPoints": 100,
          "nullPointMode": "connected",
          "nullText": null,
          "postfix": "",
          "postfixFontSize": "50%",
          "prefix": "",
          "prefixFontSize": "50%",
          "rangeMaps": [
            {
              "from": "null",
              "text": "N/A",
              "to": "null"
            }
          ],
          "span": 2,
          "sparkline": {
            "fillColor": "rgba(31, 118, 189, 0.18)",
            "full": false,
            "lineColor": "rgb(31, 120, 193)",
            "show": false
          },
          "targets": [
            {
              "application": {
                "filter": "Memória"
              },
              "functions": [],
              "group": {
                "filter": "$Grupo"
              },
              "host": {
                "filter": "$Hosts"
              },
              "item": {
                "filter": "Uso do cache %"
              },
              "mode": 0,
              "options": {
                "showDisabledItems": false
              },
              "refId": "A"
            }
          ],
          "thresholds": "75",
          "title": "Uso do cache %",
          "type": "singlestat",
          "valueFontSize": "80%",
          "valueMaps": [
            {
              "op": "=",
              "text": "N/A",
              "value": "null"
            }
          ],
          "valueName": "current"
        },
        {
          "cacheTimeout": null,
          "colorBackground": false,
          "colorValue": false,
          "colors": [
            "rgba(245, 54, 54, 0.9)",
            "rgba(237, 129, 40, 0.89)",
            "rgba(50, 172, 45, 0.97)"
          ],
          "datasource": "${DS_ZABBIX_FOURSYS}",
          "format": "short",
          "gauge": {
            "maxValue": 300,
            "minValue": 100,
            "show": true,
            "thresholdLabels": false,
            "thresholdMarkers": true
          },
          "id": 14,
          "interval": null,
          "links": [],
          "mappingType": 1,
          "mappingTypes": [
            {
              "name": "value to text",
              "value": 1
            },
            {
              "name": "range to text",
              "value": 2
            }
          ],
          "maxDataPoints": 100,
          "nullPointMode": "connected",
          "nullText": null,
          "postfix": "",
          "postfixFontSize": "50%",
          "prefix": "",
          "prefixFontSize": "50%",
          "rangeMaps": [
            {
              "from": "null",
              "text": "N/A",
              "to": "null"
            }
          ],
          "span": 1,
          "sparkline": {
            "fillColor": "rgba(31, 118, 189, 0.18)",
            "full": false,
            "lineColor": "rgb(31, 120, 193)",
            "show": false
          },
          "targets": [
            {
              "application": {
                "filter": "Processos"
              },
              "functions": [],
              "group": {
                "filter": "$Grupo"
              },
              "host": {
                "filter": "$Hosts"
              },
              "item": {
                "filter": "Número de processos"
              },
              "mode": 0,
              "options": {
                "showDisabledItems": false
              },
              "refId": "A"
            }
          ],
          "thresholds": "",
          "title": "Número de processos",
          "type": "singlestat",
          "valueFontSize": "80%",
          "valueMaps": [
            {
              "op": "=",
              "text": "N/A",
              "value": "null"
            }
          ],
          "valueName": "current"
        },
        {
          "cacheTimeout": null,
          "colorBackground": false,
          "colorValue": false,
          "colors": [
            "rgba(50, 172, 45, 0.97)",
            "rgba(237, 129, 40, 0.89)",
            "rgba(245, 54, 54, 0.9)"
          ],
          "datasource": "${DS_ZABBIX_FOURSYS}",
          "format": "none",
          "gauge": {
            "maxValue": 100,
            "minValue": 0,
            "show": true,
            "thresholdLabels": false,
            "thresholdMarkers": true
          },
          "id": 13,
          "interval": null,
          "links": [],
          "mappingType": 1,
          "mappingTypes": [
            {
              "name": "value to text",
              "value": 1
            },
            {
              "name": "range to text",
              "value": 2
            }
          ],
          "maxDataPoints": 100,
          "nullPointMode": "connected",
          "nullText": null,
          "postfix": "",
          "postfixFontSize": "50%",
          "prefix": "",
          "prefixFontSize": "50%",
          "rangeMaps": [
            {
              "from": "null",
              "text": "N/A",
              "to": "null"
            }
          ],
          "span": 1,
          "sparkline": {
            "fillColor": "rgba(31, 118, 189, 0.18)",
            "full": false,
            "lineColor": "rgb(31, 120, 193)",
            "show": false
          },
          "targets": [
            {
              "application": {
                "filter": "Processos"
              },
              "functions": [],
              "group": {
                "filter": "$Grupo"
              },
              "host": {
                "filter": "$Hosts"
              },
              "item": {
                "filter": "Número de processos executando"
              },
              "mode": 0,
              "options": {
                "showDisabledItems": false
              },
              "refId": "A"
            }
          ],
          "thresholds": "100",
          "title": "Processos executando",
          "type": "singlestat",
          "valueFontSize": "80%",
          "valueMaps": [
            {
              "op": "=",
              "text": "N/A",
              "value": "null"
            }
          ],
          "valueName": "current"
        }
      ],
      "repeat": null,
      "repeatIteration": null,
      "repeatRowId": null,
      "showTitle": false,
      "title": "Dashboard Row",
      "titleSize": "h6"
    },
    {
      "collapse": false,
      "height": 250,
      "panels": [
        {
          "aliasColors": {
            "Espaço livre na partição C: % (pfree)": "#629E51",
            "Espaço livre na partição D: % (pfree)": "#E5AC0E"
          },
          "bars": false,
          "datasource": "${DS_ZABBIX_FOURSYS}",
          "fill": 5,
          "id": 9,
          "legend": {
            "alignAsTable": false,
            "avg": false,
            "current": true,
            "max": false,
            "min": false,
            "rightSide": false,
            "show": true,
            "total": false,
            "values": true
          },
          "lines": true,
          "linewidth": 1,
          "links": [],
          "nullPointMode": "null as zero",
          "percentage": false,
          "pointradius": 5,
          "points": true,
          "renderer": "flot",
          "seriesOverrides": [],
          "span": 12,
          "stack": false,
          "steppedLine": false,
          "targets": [
            {
              "application": {
                "filter": "Disco"
              },
              "functions": [],
              "group": {
                "filter": "$Grupo"
              },
              "host": {
                "filter": "$Hosts"
              },
              "item": {
                "filter": "/.*%/"
              },
              "mode": 0,
              "options": {
                "showDisabledItems": false
              },
              "refId": "A"
            }
          ],
          "thresholds": [
            {
              "colorMode": "critical",
              "fill": true,
              "line": true,
              "op": "gt",
              "value": 10
            }
          ],
          "timeFrom": null,
          "timeShift": null,
          "title": "$Hosts - Espaço Livre em Disco",
          "tooltip": {
            "shared": true,
            "sort": 0,
            "value_type": "individual"
          },
          "type": "graph",
          "xaxis": {
            "mode": "time",
            "name": null,
            "show": true,
            "values": []
          },
          "yaxes": [
            {
              "format": "percent",
              "label": null,
              "logBase": 1,
              "max": null,
              "min": null,
              "show": true
            },
            {
              "format": "short",
              "label": null,
              "logBase": 1,
              "max": null,
              "min": null,
              "show": true
            }
          ]
        }
      ],
      "repeat": null,
      "repeatIteration": null,
      "repeatRowId": null,
      "showTitle": false,
      "title": "Dashboard Row",
      "titleSize": "h6"
    }
  ],
  "schemaVersion": 14,
  "style": "dark",
  "tags": [],
  "templating": {
    "list": [
      {
        "allValue": null,
        "current": {},
        "datasource": "${DS_ZABBIX_FOURSYS}",
        "hide": 0,
        "includeAll": false,
        "label": null,
        "multi": false,
        "name": "Grupo",
        "options": [],
        "query": "Servidores Linux",
        "refresh": 1,
        "regex": "",
        "sort": 0,
        "tagValuesQuery": "",
        "tags": [],
        "tagsQuery": "",
        "type": "query",
        "useTags": false
      },
      {
        "allValue": null,
        "current": {},
        "datasource": "${DS_ZABBIX_FOURSYS}",
        "hide": 0,
        "includeAll": false,
        "label": null,
        "multi": false,
        "name": "Hosts",
        "options": [],
        "query": "$Grupo.*",
        "refresh": 1,
        "regex": "",
        "sort": 0,
        "tagValuesQuery": "",
        "tags": [],
        "tagsQuery": "",
        "type": "query",
        "useTags": false
      }
    ]
  },
  "time": {
    "from": "2017-01-16T13:05:32.615Z",
    "to": "2017-01-16T15:05:32.615Z"
  },
  "timepicker": {
    "refresh_intervals": [
      "5s",
      "10s",
      "30s",
      "1m",
      "5m",
      "15m",
      "30m",
      "1h",
      "2h",
      "1d"
    ],
    "time_options": [
      "5m",
      "15m",
      "1h",
      "6h",
      "12h",
      "24h",
      "2d",
      "7d",
      "30d"
    ]
  },
  "timezone": "utc",
  "title": "Dashboard Servers Linux",
  "version": 15,
  "description": "Dashboard baseado em informações coletadas em ambiente Linux;\r\nNeste Dashboard, criei um Templating, onde através do Grupo selecionado é possível alterar os hosts e obter informações automáticas."
}

---

728x90

Grafana 대시보드 가져오기

1. Grafana 대시보드 홈으로 이동합니다.



2. 좌측 사이드바에서 플러스 (+) 아이콘을 클릭하고 "Import dashboard"를 선택합니다.

grafana_dashboard3



3. "Or paste JSON" 옵션을 선택하고 복사한 JSON 코드를 해당 입력란에 붙여넣습니다.

grafana_dashboard4



4. "Load" 버튼을 클릭하면 대시보드가 로드되고 구성할 수 있는 변수 및 데이터 소스 등을 선택할 수 있습니다.

grafana_dashboard5



5. 설정을 완료하고 "Import" 버튼을 클릭하여 대시보드를 저장합니다.



이제 해당 대시보드가 Grafana에 추가되었을 것입니다.



주의할 점은 대시보드를 가져올 때 사용되는 데이터 소스가 로컬에 있는 것과 호환되어야 합니다. 데이터 소스의 이름이나 설정이 변경되었다면 적절한 데이터 소스로 수정해야 합니다.



참고URL

- Grafana Labs : dashboards



728x90
