[리눅스] Elasticsearch와 Kibana를 설치하고 연동하는 방법(single node)

Elasticsearch와 Kibana를 설치하고 연동하는 방법(single node)

테스트 환경

$ cat /etc/os-release
NAME="Amazon Linux"
VERSION="2"
ID="amzn"
ID_LIKE="centos rhel fedora"
VERSION_ID="2"
PRETTY_NAME="Amazon Linux 2"
ANSI_COLOR="0;33"
CPE_NAME="cpe:2.3:o:amazon:amazon_linux:2"
HOME_URL="https://amazonlinux.com/"

Elasticsearch 설치

Elasticsearch 다운로드 페이지

• https://www.elastic.co/downloads/elasticsearch
• https://www.elastic.co/guide/en/elasticsearch/reference/8.6/rpm.html#rpm-repo

Elasticsearch 리포지토리

vim /etc/yum.repos.d/elasticsearch.repo

[elasticsearch]
name=Elasticsearch repository for 8.x packages
baseurl=https://artifacts.elastic.co/packages/8.x/yum
gpgcheck=1
gpgkey=https://artifacts.elastic.co/GPG-KEY-elasticsearch
enabled=0
autorefresh=1
type=rpm-md

Elasticsearch 패키지 설치

yum install --enablerepo=elasticsearch -y elasticsearch

--------------------------- Security autoconfiguration information ------------------------------

Authentication and authorization are enabled.
TLS for the transport and HTTP layers is enabled and configured.

The generated password for the elastic built-in superuser is : p4jNvNrbxThupVUnN=Xv

If this node should join an existing cluster, you can reconfigure this with
'/usr/share/elasticsearch/bin/elasticsearch-reconfigure-node --enrollment-token <token-here>'
after creating an enrollment token on your existing cluster.

You can complete the following actions at any time:

Reset the password of the elastic built-in superuser with
'/usr/share/elasticsearch/bin/elasticsearch-reset-password -u elastic'.

Generate an enrollment token for Kibana instances with
 '/usr/share/elasticsearch/bin/elasticsearch-create-enrollment-token -s kibana'.

Generate an enrollment token for Elasticsearch nodes with
'/usr/share/elasticsearch/bin/elasticsearch-create-enrollment-token -s node'.

-------------------------------------------------------------------------------------------------
### NOT starting on installation, please execute the following statements to configure
elasticsearch service to start automatically using systemd
 sudo systemctl daemon-reload
 sudo systemctl enable elasticsearch.service
### You can start elasticsearch service by executing
 sudo systemctl start elasticsearch.service

Elasticsearch(elasticsearch.yml) 설정 확인

cat /etc/elasticsearch/elasticsearch.yml | egrep -v '^$|^#'

$ cat /etc/elasticsearch/elasticsearch.yml | egrep -v '^$|^#'
path.data: /var/lib/elasticsearch
path.logs: /var/log/elasticsearch
xpack.security.enabled: true
xpack.security.enrollment.enabled: true
xpack.security.http.ssl:
  enabled: true
  keystore.path: certs/http.p12
xpack.security.transport.ssl:
  enabled: true
  verification_mode: certificate
  keystore.path: certs/transport.p12
  truststore.path: certs/transport.p12
cluster.initial_master_nodes: ["elasticsearch"]
http.host: 0.0.0.0

Elasticsearch 서비스 시작(실행)

systemctl --now enable elasticsearch.service

Elasticsearch 서비스 상태 확인

systemctl status elasticsearch.service

journalctl -xe

[error]
systemd-entrypoint[23634]: /usr/share/elasticsearch/bin/systemd-entrypoint: line 7: /etc/elasticsearch/my_pwd_file.tmp: No such file or directory

Elasticsearch 키 저장소 비밀번호

echo "1234" > /etc/elasticsearch/my_pwd_file.tmp

Elasticsearch 서비스 재시작(실행)

systemctl restart elasticsearch.service

elasticsearch 정보 확인

curl -k -XGET 'https://elastic:p4jNvNrbxThupVUnN=Xv@localhost:9200'

$ curl -k -XGET 'https://elastic:p4jNvNrbxThupVUnN=Xv@localhost:9200'
{
  "name" : "elasticsearch",
  "cluster_name" : "elasticsearch",
  "cluster_uuid" : "Q8dHPJaaS_SHikGLC-hEmQ",
  "version" : {
    "number" : "8.6.2",
    "build_flavor" : "default",
    "build_type" : "rpm",
    "build_hash" : "2d58d0f136141f03239816a4e360a8d17b6d8f29",
    "build_date" : "2023-02-13T09:35:20.314882762Z",
    "build_snapshot" : false,
    "lucene_version" : "9.4.2",
    "minimum_wire_compatibility_version" : "7.17.0",
    "minimum_index_compatibility_version" : "7.0.0"
  },
  "tagline" : "You Know, for Search"
}

elastic 계정의 패스워드 재설정

/usr/share/elasticsearch/bin/elasticsearch-reset-password -u elastic -i

$ /usr/share/elasticsearch/bin/elasticsearch-reset-password -u elastic -i
This tool will reset the password of the [elastic] user.
You will be prompted to enter the password.
Please confirm that you would like to continue [y/N]y


Enter password for [elastic]:
Re-enter password for [elastic]:
Password for the [elastic] user successfully reset.

kibana_system 계정의 패스워드 재설정

/usr/share/elasticsearch/bin/elasticsearch-reset-password -u kibana_system -i

elasticsearch 정보 확인

curl --cacert /etc/elasticsearch/certs/http_ca.crt -u elastic https://localhost:9200

$ curl --cacert /etc/elasticsearch/certs/http_ca.crt -u elastic https://localhost:9200
Enter host password for user 'elastic':
{
  "name" : "elasticsearch",
  "cluster_name" : "elasticsearch",
  "cluster_uuid" : "Q8dHPJaaS_SHikGLC-hEmQ",
  "version" : {
    "number" : "8.6.2",
    "build_flavor" : "default",
    "build_type" : "rpm",
    "build_hash" : "2d58d0f136141f03239816a4e360a8d17b6d8f29",
    "build_date" : "2023-02-13T09:35:20.314882762Z",
    "build_snapshot" : false,
    "lucene_version" : "9.4.2",
    "minimum_wire_compatibility_version" : "7.17.0",
    "minimum_index_compatibility_version" : "7.0.0"
  },
  "tagline" : "You Know, for Search"
}



Kibana 설치

Kibana 다운로드 페이지

• https://www.elastic.co/downloads/kibana
• https://www.elastic.co/guide/en/kibana/8.6/rpm.html#rpm-repo

Kibana 패키지 설치

yum install --enablerepo=elasticsearch -y kibana

Kibana(kibana.yml) 설정 확인

cat /etc/kibana/kibana.yml | egrep -v '^$|^#'

$ cat /etc/kibana/kibana.yml | egrep -v '^$|^#'
logging:
  appenders:
    file:
      type: file
      fileName: /var/log/kibana/kibana.log
      layout:
        type: json
  root:
    appenders:
      - default
      - file
pid.file: /run/kibana/kibana.pid

kibana.yml 편집

• server.port: 5601
• server.host: "0.0.0.0"
• server.publicBaseUrl: "http://server-ip:5601"

vim /etc/kibana/kibana.yml

# =================== System: Kibana Server ===================
# Kibana is served by a back end server. This setting specifies the port to use.
server.port: 5601

# Specifies the address to which the Kibana server will bind. IP addresses and host names are both valid values.
# The default is 'localhost', which usually means remote machines will not be able to connect.
# To allow connections from remote users, set this parameter to a non-loopback address.
server.host: "0.0.0.0"

# Enables you to specify a path to mount Kibana at if you are running behind a proxy.
# Use the `server.rewriteBasePath` setting to tell Kibana if it should remove the basePath
# from requests it receives, and to prevent a deprecation warning at startup.
# This setting cannot end in a slash.
#server.basePath: ""

# Specifies whether Kibana should rewrite requests that are prefixed with
# `server.basePath` or require that they are rewritten by your reverse proxy.
# Defaults to `false`.
#server.rewriteBasePath: false

# Specifies the public URL at which Kibana is available for end users. If
# `server.basePath` is configured this URL should end with the same basePath.
server.publicBaseUrl: "http://server-ip:5601"

Kibana 서비스 시작(실행)

systemctl --now enable kibana.service

Kibana 서비스 상태 확인

• Go to http://0.0.0.0:5601/?code=683195 to get started.

systemctl status kibana.service

$ systemctl status kibana.service
● kibana.service - Kibana
   Loaded: loaded (/usr/lib/systemd/system/kibana.service; enabled; vendor preset: disabled)
   Active: active (running) since Thu 2023-03-16 23:29:01 KST; 22s ago
     Docs: https://www.elastic.co
 Main PID: 25050 (node)
   CGroup: /system.slice/kibana.service
           └─25050 /usr/share/kibana/bin/../node/bin/node /usr/share/kibana/bin/../src/cli/dist

Mar 16 23:29:20 elasticsearch kibana[25050]: [2023-03-16T23:29:20.672+09:00][INFO ][plugins-service] Plugin "cloudExperiments" is disabled.
Mar 16 23:29:20 elasticsearch kibana[25050]: [2023-03-16T23:29:20.672+09:00][INFO ][plugins-service] Plugin "cloudFullStory" is disabled.
Mar 16 23:29:20 elasticsearch kibana[25050]: [2023-03-16T23:29:20.672+09:00][INFO ][plugins-service] Plugin "cloudGainsight" is disabled.
Mar 16 23:29:20 elasticsearch kibana[25050]: [2023-03-16T23:29:20.683+09:00][INFO ][plugins-service] Plugin "profiling" is disabled.
Mar 16 23:29:20 elasticsearch kibana[25050]: [2023-03-16T23:29:20.793+09:00][INFO ][http.server.Preboot] http server running at http://0.0.0.0:5601
Mar 16 23:29:20 elasticsearch kibana[25050]: [2023-03-16T23:29:20.885+09:00][INFO ][plugins-system.preboot] Setting up [1] plugins: [interactiveSetup]
Mar 16 23:29:20 elasticsearch kibana[25050]: [2023-03-16T23:29:20.889+09:00][INFO ][preboot] "interactiveSetup" plugin is holding setup: Validating Elasticsearch co…onfiguration…
Mar 16 23:29:20 elasticsearch kibana[25050]: [2023-03-16T23:29:20.943+09:00][INFO ][root] Holding setup until preboot stage is completed.
Mar 16 23:29:20 elasticsearch kibana[25050]: i Kibana has not been configured.
Mar 16 23:29:20 elasticsearch kibana[25050]: Go to http://0.0.0.0:5601/?code=683195 to get started.
Hint: Some lines were ellipsized, use -l to show in full.

728x90

Elasticsearch와 Kibana 연동

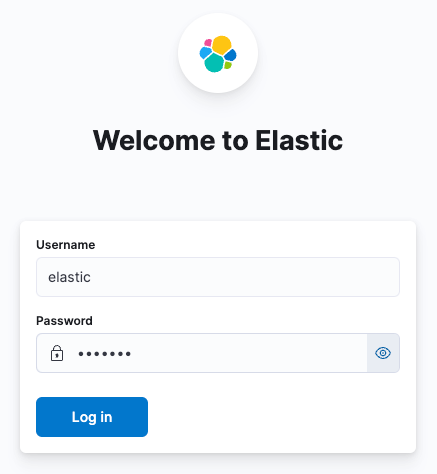

• 브라우저(UI)에서 http://server-ip:5601 접근





• Address : https://localhost:9200



• Username: kibana_system
• Password: kibana_system

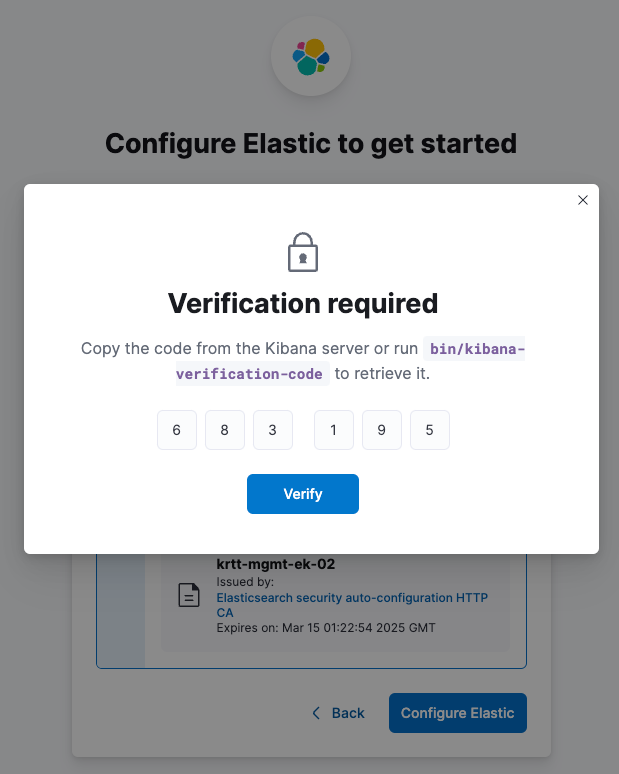

/usr/share/kibana/bin/kibana-verification-code

$ /usr/share/kibana/bin/kibana-verification-code
Your verification code is:  683 195











---

Kibana(kibana.yml) 설정 확인

- 브라우저를 통한 설정이 완료되면 아래와 같은 항목이 추가됨

• elasticsearch.hosts:
• elasticsearch.username:
• elasticsearch.password:
• elasticsearch.ssl.certificateAuthorities:
• xpack.fleet.outputs:

$ cat /etc/kibana/kibana.yml | egrep -v '^$|^#'
server.port: 5601
server.host: "0.0.0.0"
server.publicBaseUrl: "http://server-ip:5601"
logging:
  appenders:
    file:
      type: file
      fileName: /var/log/kibana/kibana.log
      layout:
        type: json
  root:
    appenders:
      - default
      - file
pid.file: /run/kibana/kibana.pid
elasticsearch.hosts: ['https://localhost:9200']
elasticsearch.username: kibana_system
elasticsearch.password: kibana_system
elasticsearch.ssl.certificateAuthorities: [/var/lib/kibana/ca_1678977426886.crt]
xpack.fleet.outputs: [{id: fleet-default-output, name: default, is_default: true, is_default_monitoring: true, type: elasticsearch, hosts: ['https://localhost:9200'], ca_trusted_fingerprint: aa68bed197c6921933227e49d5917576b31161fbbdaf5ad73616247a30b7aaaa}]
