Vault 클러스터를 Consul을 백엔드 스토리지로 사용하여 구성하는 방법

1. Consul 클러스터 설정

Consul 설정 파일

• retry_join 항목에 클러스터 내 다른 Consul 서버들의 IP를 입력합니다. 각 서버마다 node_name과 IP 주소를 고유하게 설정합니다.

vim /etc/consul.d/consul.hcl

datacenter = "dc1"
data_dir = "/opt/consul"
log_level = "INFO"
node_name = "consul-server-1" # 각 서버마다 고유하게 설정
server = true
bootstrap_expect = 3 # 클러스터 내 서버 수
bind_addr = "0.0.0.0"
client_addr = "0.0.0.0"

retry_join = ["<consul_server_1_ip>", "<consul_server_2_ip>", "<consul_server_3_ip>"]

2. Vault 설치 및 설정

Vault 설정 파일

• /etc/vault.d/vault.hcl 파일을 작성합니다.

vim /etc/vault.d/vault.hcl

storage "consul" {
  address = "http://<consul_server_1_ip>:8500"
  path    = "vault/"
}

listener "tcp" {
  address     = "0.0.0.0:8200"
  tls_disable = 1
}

api_addr     = "http://<vault_node_ip>:8200"
cluster_addr = "http://<vault_node_ip>:8201"

• node211

sudo tee /etc/vault.d/vault.hcl > /dev/null <<EOF
ui = true

storage "consul" {
  address = "http://192.168.0.211:8500"
  path    = "vault/"
}

listener "tcp" {
  address     = "0.0.0.0:8200"
  tls_disable = 1
}

api_addr     = "http://192.168.0.211:8200"

cluster_addr = "http://192.168.0.211:8201"
EOF

• node212

sudo tee /etc/vault.d/vault.hcl > /dev/null <<EOF
ui = true

storage "consul" {
  address = "http://192.168.0.212:8500"
  path    = "vault/"
}

listener "tcp" {
  address     = "0.0.0.0:8200"
  tls_disable = 1
}

api_addr     = "http://192.168.0.212:8200"

cluster_addr = "http://192.168.0.212:8201"
EOF

• node213

sudo tee /etc/vault.d/vault.hcl > /dev/null <<EOF
ui = true

storage "consul" {
  address = "http://192.168.0.213:8500"
  path    = "vault/"
}

listener "tcp" {
  address     = "0.0.0.0:8200"
  tls_disable = 1
}

api_addr     = "http://192.168.0.213:8200"

cluster_addr = "http://192.168.0.213:8201"
EOF

sudo systemctl restart vault

sudo systemctl status vault --no-pager

3. Vault 초기화 및 클러스터 구성

Vault 초기화

클러스터의 첫 번째 서버에서 Vault를 초기화합니다.

vault operator init | tee ~/vault_info.txt

$ vault operator init
Unseal Key 1: r8c5QcvtcqrEAQKX/mo/Mnc4Omx4jHa1G2Ljnu/y4I8u
Unseal Key 2: biF07mWmcDAP3lcImG6r1ztvAtYEDeB6zb0Y83iCnlmq
Unseal Key 3: rs8SdERte+jfvvgL8qc5J/OZGv1XixGaAZsnp9SzrUOA
Unseal Key 4: vbcAJWv6FZqvRm74kHQ0Bbbc0EZOcixWuIjWDvpDBV+k
Unseal Key 5: GEVFLOcAVshPjS4bg6RA/6CO8feuEh3PuMpuSl0PsnfJ

Initial Root Token: hvs.BIxTB1s1qVzlFPWat5FxbfKy

Vault initialized with 5 key shares and a key threshold of 3. Please securely
distribute the key shares printed above. When the Vault is re-sealed,
restarted, or stopped, you must supply at least 3 of these keys to unseal it
before it can start servicing requests.

Vault does not store the generated root key. Without at least 3 keys to
reconstruct the root key, Vault will remain permanently sealed!

It is possible to generate new unseal keys, provided you have a quorum of
existing unseal keys shares. See "vault operator rekey" for more information.

환경 변수 설정

export VAULT_ADDR='http://127.0.0.1:8200'

export VAULT_TOKEN="hvs.BIxTB1s1qVzlFPWat5FxbfKy"

언실(Sealing) 해제

초기화된 Vault를 언실하기 위해 언실 키를 사용합니다.

vault operator unseal <unseal_key>

vault operator unseal r8c5QcvtcqrEAQKX/mo/Mnc4Omx4jHa1G2Ljnu/y4I8u
vault operator unseal biF07mWmcDAP3lcImG6r1ztvAtYEDeB6zb0Y83iCnlmq
vault operator unseal rs8SdERte+jfvvgL8qc5J/OZGv1XixGaAZsnp9SzrUOA



vault login <root_token>

vault login

$ vault login
Token (will be hidden):
WARNING! The VAULT_TOKEN environment variable is set! The value of this
variable will take precedence; if this is unwanted please unset VAULT_TOKEN or
update its value accordingly.

Success! You are now authenticated. The token information displayed below
is already stored in the token helper. You do NOT need to run "vault login"
again. Future Vault requests will automatically use this token.

Key                  Value
---                  -----
token                hvs.BIxTB1s1qVzlFPWat5FxbfKy
token_accessor       Yv6MJeWTkWwRvCKHG7JCZ1qU
token_duration       ∞
token_renewable      false
token_policies       ["root"]
identity_policies    []
policies             ["root"]



vault operator members

$ vault operator members
Host Name    API Address                  Cluster Address               Active Node    Version    Upgrade Version    Redundancy Zone    Last Echo
---------    -----------                  ---------------               -----------    -------    ---------------    ---------------    ---------
node211      http://192.168.0.211:8200    https://192.168.0.211:8201    true           1.17.2     n/a                n/a                n/a

클러스터에 노드 추가

export VAULT_ADDR='http://192.168.0.211:8200'

export VAULT_TOKEN="hvs.6j4cuewowBGit65rheNoceI7"

나머지 서버에서 첫 번째 서버에 연결하여 클러스터에 참여시킵니다.

vault operator raft join http://<첫_번째_서버_ip>:8200

vault operator raft join http://192.168.0.211:8200

각 노드 언실(Sealing) 해제

• 클러스터에 참여한 각 노드를 언실합니다.

vault operator unseal <unseal_key>

vault operator unseal r8c5QcvtcqrEAQKX/mo/Mnc4Omx4jHa1G2Ljnu/y4I8u
vault operator unseal biF07mWmcDAP3lcImG6r1ztvAtYEDeB6zb0Y83iCnlmq
vault operator unseal rs8SdERte+jfvvgL8qc5J/OZGv1XixGaAZsnp9SzrUOA



vault login $VAULT_TOKEN



vault operator members

$ vault operator members
Host Name    API Address                  Cluster Address               Active Node    Version    Upgrade Version    Redundancy Zone    Last Echo
---------    -----------                  ---------------               -----------    -------    ---------------    ---------------    ---------
node211      http://192.168.0.211:8200    https://192.168.0.211:8201    true           1.17.2     n/a                n/a                n/a
node212      http://192.168.0.212:8200    https://192.168.0.212:8201    false          1.17.2     n/a                n/a                2024-07-26T11:04:04+09:00
node213      http://192.168.0.213:8200    https://192.168.0.213:8201    false          1.17.2     n/a                n/a                2024-07-26T11:04:07+09:00

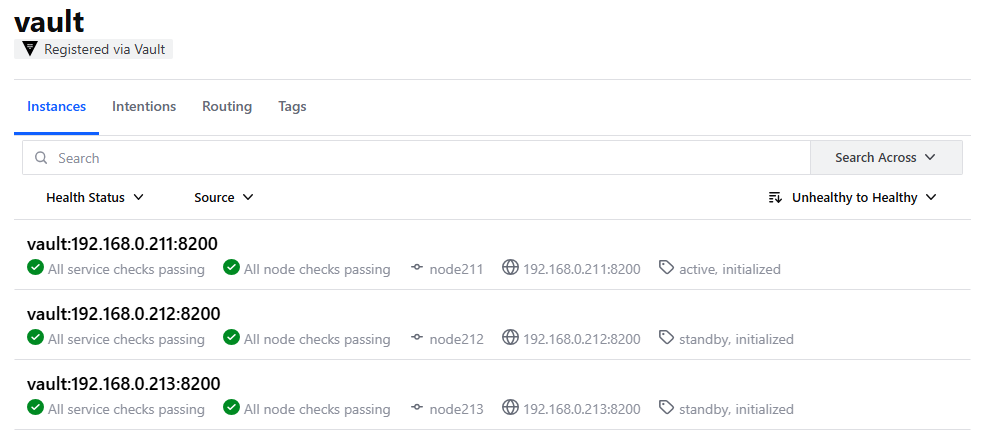

consul_services_vault_instances

4. 클러스터 상태 확인

모든 서버에서 vault status 명령어를 사용하여 클러스터 상태를 확인합니다.

vault status

$ vault status
Key             Value
---             -----
Seal Type       shamir
Initialized     true
Sealed          false
Total Shares    5
Threshold       3
Version         1.17.2
Build Date      2024-07-05T15:19:12Z
Storage Type    consul
Cluster Name    vault-cluster-3f170889
Cluster ID      deb82303-0680-7690-fded-86c3bda98907
HA Enabled      true
HA Cluster      https://192.168.0.211:8201
HA Mode         active
Active Since    2024-07-25T16:24:31.756581423+09:00



정상적으로 클러스터가 구성되었다면 각 서버에서 Vault의 상태 정보를 확인할 수 있습니다.
