쿠버네티스 클러스터(Kubernetes Cluster)를 멀티 마스터(Multi Master) 환경에서 고가용성(Highly Available)을 구현하는 방법

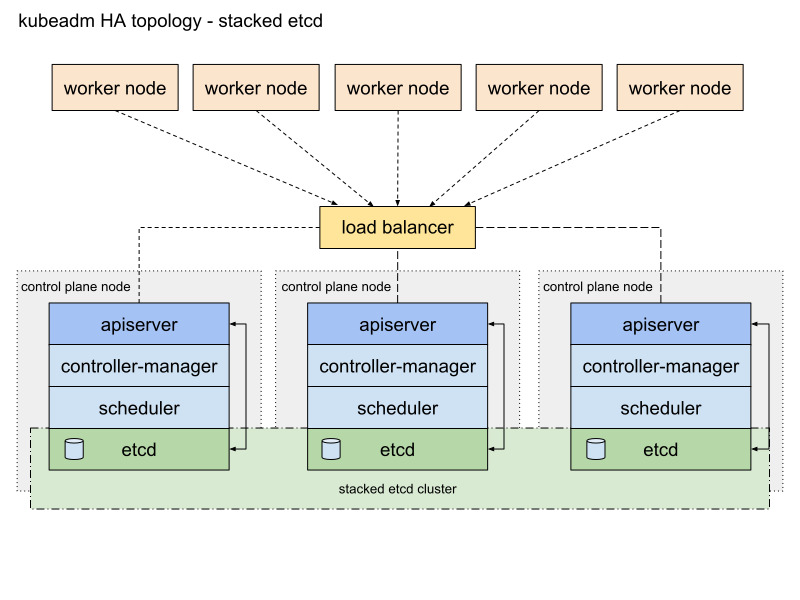

쿠버네티스 클러스터를 멀티 마스터 환경에서 고가용성(HA)을 구현하는 것은 클러스터의 Control Plane을 여러 마스터 노드로 분산하여 단일 장애 지점을 없애는 중요한 작업입니다. 이를 통해 클러스터의 신뢰성과 가용성을 높일 수 있습니다.
| Hostname | IP Address | Application | |
| k8s-lb1 | 192.168.0.130 | haproxy | |
| k8s-master1 | 192.168.0.131 | kubelet kubeadm kubectl | |
| k8s-master2 | 192.168.0.132 | kubelet kubeadm kubectl | |
| k8s-master3 | 192.168.0.111 | kubelet kubeadm kubectl |
1. 로드 밸런서 설정
로드 밸런서 : 클러스터 API 서버에 대한 요청을 분산시키기 위해 로드 밸런서를 설정합니다. 모든 마스터 노드의 API 서버 IP를 로드 밸런서에 등록합니다.
더보기
---
sudo add-apt-repository -y ppa:vbernat/haproxy-3.0sudo apt-get install haproxy=3.0.\*sudo systemctl --now enable haproxysudo vim /etc/haproxy/haproxy.cfg# HAProxy configuration file
global
log 127.0.0.1 local0
log /dev/log local0
log /dev/log local1 notice
chroot /var/lib/haproxy
stats socket /run/haproxy/admin.sock mode 660 level admin
stats timeout 30s
user haproxy
group haproxy
daemon
# Default SSL material locations
ca-base /etc/ssl/certs
crt-base /etc/ssl/private
# See: https://ssl-config.mozilla.org/#server=haproxy&server-version=2.0.3&config=intermediate
ssl-default-bind-ciphers ECDHE-ECDSA-AES128-GCM-SHA256:ECDHE-RSA-AES128-GCM-SHA256:ECDHE-ECDSA-AES256-GCM-SHA384:ECDHE-RSA-AES256-GCM-SHA384:ECDHE-ECDSA-CHACHA20-POLY1305:ECDHE-RSA-CHACHA20-POLY1305:DHE-RSA-AES128-GCM-SHA256:DHE-RSA-AES256-GCM-SHA384
ssl-default-bind-ciphersuites TLS_AES_128_GCM_SHA256:TLS_AES_256_GCM_SHA384:TLS_CHACHA20_POLY1305_SHA256
ssl-default-bind-options ssl-min-ver TLSv1.2 no-tls-tickets
defaults
log global
mode http
option httplog
option dontlognull
timeout connect 5000
timeout client 50000
timeout server 50000
errorfile 400 /etc/haproxy/errors/400.http
errorfile 403 /etc/haproxy/errors/403.http
errorfile 408 /etc/haproxy/errors/408.http
errorfile 500 /etc/haproxy/errors/500.http
errorfile 502 /etc/haproxy/errors/502.http
errorfile 503 /etc/haproxy/errors/503.http
errorfile 504 /etc/haproxy/errors/504.http
# Kubernetes API Server Frontend
frontend kubernetes
bind 0.0.0.0:6443
mode tcp
option tcplog
default_backend kubernetes-master-nodes
# Backend for Kubernetes Master Nodes
backend kubernetes-master-nodes
mode tcp
option tcp-check
balance roundrobin
server master1 192.168.0.131:6443 check fall 3 rise 2
server master2 192.168.0.132:6443 check fall 3 rise 2
server master3 192.168.0.111:6443 check fall 3 rise 2
# Statistics interface
listen stats
bind 192.168.0.130:8888
mode http
stats enable
stats uri /
stats refresh 10s
stats realm HAProxy\ Statistics
stats auth admin:adminsudo haproxy -c -f /etc/haproxy/haproxy.cfgsudo systemctl status haproxy --no-pager -l---
2. 모든 노드에서 사전 준비 작업
더보기
---
패키지 설치 및 환경 설정
sudo apt-get update
sudo apt-get install -y apt-transport-https ca-certificates curl gnupg2 software-properties-common
curl -fsSL https://download.docker.com/linux/ubuntu/gpg | sudo apt-key --keyring /etc/apt/trusted.gpg.d/docker.gpg add -
echo "deb [arch=$(dpkg --print-architecture)] https://download.docker.com/linux/ubuntu $(lsb_release -cs) stable" | sudo tee /etc/apt/sources.list.d/docker.list
sudo apt-get update
sudo apt-get install -y containerd.io
sudo containerd config default > /etc/containerd/config.toml
sudo sed -i 's/SystemdCgroup = false/SystemdCgroup = true/g' /etc/containerd/config.tomlsudo apt-get update && sudo apt-get install -y apt-transport-https ca-certificates curl
KUBERNETES_VERSION="v1.27"
sudo mkdir -p -m 755 /etc/apt/keyrings
curl -fsSL https://pkgs.k8s.io/core:/stable:/${KUBERNETES_VERSION}/deb/Release.key | sudo gpg --dearmor -o /etc/apt/keyrings/kubernetes-apt-keyring.gpg
echo "deb [signed-by=/etc/apt/keyrings/kubernetes-apt-keyring.gpg] https://pkgs.k8s.io/core:/stable:/${KUBERNETES_VERSION}/deb/ /" | sudo tee /etc/apt/sources.list.d/kubernetes.list
sudo apt-get update
sudo apt-get install -y kubelet kubeadm kubectl
sudo apt-mark hold kubelet kubeadm kubectlSwap 비활성화

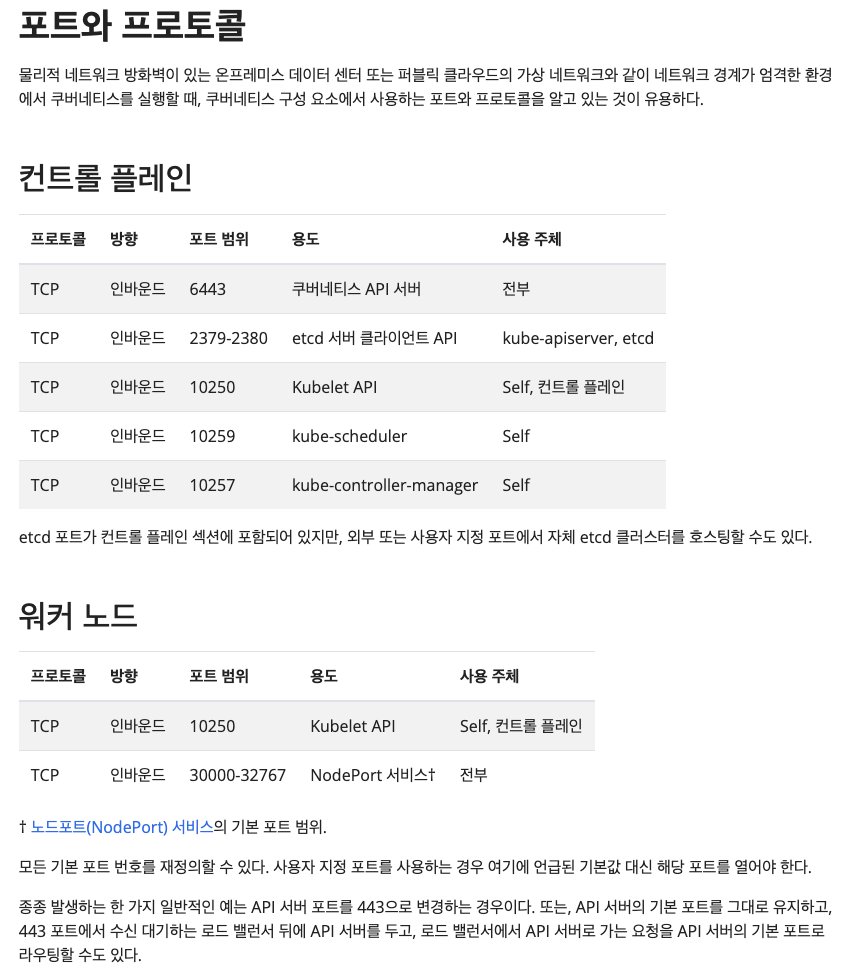

swapoff -a방화벽 설정
ufw allow 6443/tcp # API 서버 포트
ufw allow 2379:2380/tcp # etcd 포트
ufw allow 10250/tcp # Kubelet 포트
ufw allow 10251/tcp # kube-scheduler 포트
ufw allow 10252/tcp # kube-controller-manager 포트
ufw allow 30000:32767/tcp # NodePort 포트NTP 설정
apt-get install -y ntp
systemctl start ntp
systemctl enable ntp---
3. 첫 번째 마스터 노드에서 클러스터 초기화
Kubernetes 클러스터 초기화
sudo kubeadm init --pod-network-cidr=10.244.0.0/16 \
--control-plane-endpoint 192.168.0.130:6443 \
--upload-certs | tee $HOME/kubeadm_init_output.log- <LOAD_BALANCER_DNS> : API 서버에 접근할 수 있는 로드 밸런서의 DNS 또는 IP
- <PORT> : 기본 포트는 6443입니다.
root@k8s-master1:~$ sudo kubeadm init --pod-network-cidr=10.244.0.0/16 \
--control-plane-endpoint 192.168.0.130:6443 \
--upload-certs | tee $HOME/kubeadm_init_output.log
...
Your Kubernetes control-plane has initialized successfully!
To start using your cluster, you need to run the following as a regular user:
mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config
Alternatively, if you are the root user, you can run:
export KUBECONFIG=/etc/kubernetes/admin.conf
You should now deploy a pod network to the cluster.
Run "kubectl apply -f [podnetwork].yaml" with one of the options listed at:
https://kubernetes.io/docs/concepts/cluster-administration/addons/
You can now join any number of the control-plane node running the following command on each as root:
kubeadm join 192.168.0.130:6443 --token tpzq96.7yui4p69lt5ntg47 \
--discovery-token-ca-cert-hash sha256:2a884163bc08947a762f57918bde830c2381a45ca193591b76eb637fb99a6e58 \
--control-plane --certificate-key 36243f5d802e993f97f35652113701a1d1dc7ae4cae4118820b45ea45b8a52a6
Please note that the certificate-key gives access to cluster sensitive data, keep it secret!
As a safeguard, uploaded-certs will be deleted in two hours; If necessary, you can use
"kubeadm init phase upload-certs --upload-certs" to reload certs afterward.
Then you can join any number of worker nodes by running the following on each as root:
kubeadm join 192.168.0.130:6443 --token tpzq96.7yui4p69lt5ntg47 \
--discovery-token-ca-cert-hash sha256:2a884163bc08947a762f57918bde830c2381a45ca193591b76eb637fb99a6e58kubectl 설정
mkdir -p $HOME/.kube
cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
chown $(id -u):$(id -g) $HOME/.kube/config4. 추가 마스터 노드에서 조인
추가 마스터에서 조인
kubeadm join 192.168.0.130:6443 --token tpzq96.7yui4p69lt5ntg47 \
--discovery-token-ca-cert-hash sha256:2a884163bc08947a762f57918bde830c2381a45ca193591b76eb637fb99a6e58 \
--control-plane --certificate-key 36243f5d802e993f97f35652113701a1d1dc7ae4cae4118820b45ea45b8a52a6- <TOKEN> : 첫 번째 마스터에서 생성한 토큰
- <HASH> : 인증서 해시
- <CERTIFICATE_KEY> : 인증서 키
root@k8s-master2:~$ kubeadm join 192.168.0.130:6443 --token tpzq96.7yui4p69lt5ntg47 \
--discovery-token-ca-cert-hash sha256:2a884163bc08947a762f57918bde830c2381a45ca193591b76eb637fb99a6e58 \
--control-plane --certificate-key 36243f5d802e993f97f35652113701a1d1dc7ae4cae4118820b45ea45b8a52a6
...
This node has joined the cluster and a new control plane instance was created:
* Certificate signing request was sent to apiserver and approval was received.
* The Kubelet was informed of the new secure connection details.
* Control plane label and taint were applied to the new node.
* The Kubernetes control plane instances scaled up.
* A new etcd member was added to the local/stacked etcd cluster.
To start administering your cluster from this node, you need to run the following as a regular user:
mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config
Run 'kubectl get nodes' to see this node join the cluster.kubectl 설정
mkdir -p $HOME/.kube
cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
chown $(id -u):$(id -g) $HOME/.kube/config5. 클러스터 상태 확인
클러스터 상태 확인
kubectl get nodes$ kubectl get nodes
NAME STATUS ROLES AGE VERSION
k8s-master1 Ready control-plane 50m v1.27.16
k8s-master2 Ready control-plane 47m v1.27.16
k8s-master3 Ready control-plane 46m v1.27.16kubectl get pods --all-namespaces$ kubectl get pods --all-namespaces
NAMESPACE NAME READY STATUS RESTARTS AGE
kube-system coredns-5d78c9869d-52g7m 0/1 Running 0 51m
kube-system coredns-5d78c9869d-qhhpr 0/1 Running 0 51m
kube-system etcd-k8s-master1 1/1 Running 19 51m
kube-system etcd-k8s-master2 1/1 Running 232 48m
kube-system etcd-k8s-master3 1/1 Running 2 47m
kube-system kube-apiserver-k8s-master1 1/1 Running 11 51m
kube-system kube-apiserver-k8s-master2 1/1 Running 233 48m
kube-system kube-apiserver-k8s-master3 1/1 Running 39 47m
kube-system kube-controller-manager-k8s-master1 1/1 Running 126 (48m ago) 51m
kube-system kube-controller-manager-k8s-master2 1/1 Running 231 48m
kube-system kube-controller-manager-k8s-master3 1/1 Running 40 47m
kube-system kube-proxy-8dh8z 1/1 Running 0 51m
kube-system kube-proxy-mr67h 1/1 Running 0 48m
kube-system kube-proxy-xss5p 1/1 Running 2 47m
kube-system kube-scheduler-k8s-master1 1/1 Running 121 (48m ago) 51m
kube-system kube-scheduler-k8s-master2 1/1 Running 219 48m
kube-system kube-scheduler-k8s-master3 1/1 Running 39 47m
참고URL
- Kubernetes Documentation : Creating Highly Available Clusters with kubeadm
- Kubernetes Documentation : Kubernetes Components
- Kubernetes Documentation : Options for Highly Available Topology
- Kubernetes Components : 포트와 프로토콜
